In PID control, several key parameters are used to regulate the system's response. The proportional coefficient (Kp) determines how strongly the controller reacts to the current error. The proportional band refers to the range of input deviation that results in a full-scale output change. This is essentially the inverse of Kp.
T represents the sampling time, Ti is the integral time, and Td is the derivative time. These parameters are crucial for tuning the system to achieve optimal performance. For example:
- Temperature (T): P = 20–60%, Ti = 180–600s, Td = 3–180s
- Pressure (P): P = 30–70%, Ti = 24–180s
- Level (L): P = 20–80%, Ti = 60–300s
- Flow rate (L): P = 40–100%, Ti = 6–60s

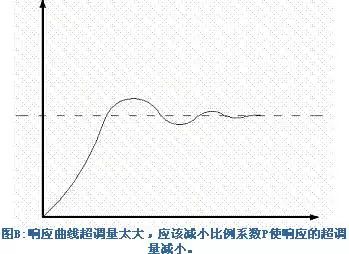

Tuning these parameters involves observing the system's behavior and making adjustments accordingly. If the curve oscillates frequently, increasing the proportional band can help reduce this. On the other hand, if the maximum deviation is large and the system becomes non-periodic, reducing the proportional band may be necessary.

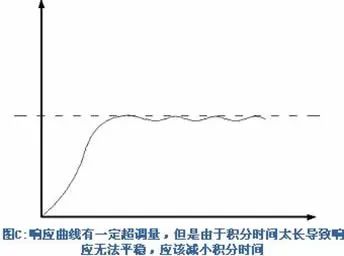

When the system shows large fluctuations, increasing the integral time can stabilize it. However, if the system deviates from the setpoint and doesn't return quickly, decreasing the integral time can speed up the correction process.
For oscillatory behavior, it’s often beneficial to minimize or temporarily disable the differential action. If the system has a large maximum deviation and slow damping, extending the differential time can improve the response.

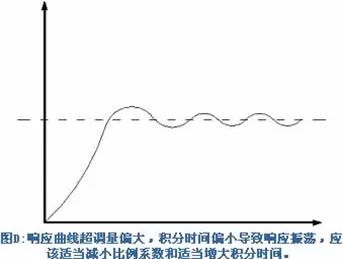

If the proportional band is too small, the integral time is too short, or the differential time is too long, periodic shocks can occur. Too small a proportional band leads to short oscillation periods, while too long an integral time causes longer oscillations. A very large differential time results in the shortest oscillation period.
If the proportional band is too large or the integral time is too long, the system's response becomes sluggish. A large proportional band can cause the curve to deviate significantly from the setpoint, while a long integral time leads to a slow, irregular return to the target.
It's important to note that if the integral time is too long or the derivative time is too large beyond acceptable limits, no adjustment to the proportional band will help. Therefore, it's essential to stay within recommended ranges during tuning.
PID controllers are widely used because they effectively address stability, speed, and accuracy in control systems. By adjusting the P, I, and D terms, the system can maintain stability while responding quickly and accurately to changes. The integral term helps eliminate steady-state error, while the derivative term predicts future errors based on their rate of change.
Tuning PID parameters can be challenging, especially for beginners. A common approach includes starting with negative feedback, then gradually adjusting the proportional gain, followed by the integral and derivative terms. Each step should be tested and refined to ensure the system performs as expected.
Understanding the difference between open-loop and closed-loop control systems is also essential. Closed-loop systems use feedback to adjust the output, whereas open-loop systems do not. This feedback mechanism allows for more precise control and better adaptation to disturbances.

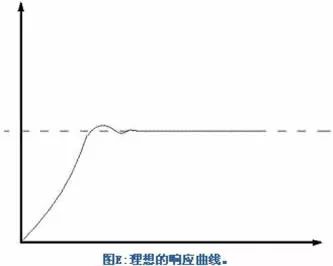

Step response analysis is another critical aspect of control theory. It helps evaluate how a system reacts to sudden changes, providing insights into its stability, accuracy, and speed. The steady-state error, rise time, and overshoot are all important metrics in this evaluation.
In practice, many industrial systems rely on PID controllers due to their simplicity, reliability, and effectiveness. Whether it's temperature, pressure, level, or flow control, PID tuning plays a vital role in ensuring smooth and efficient operation.
