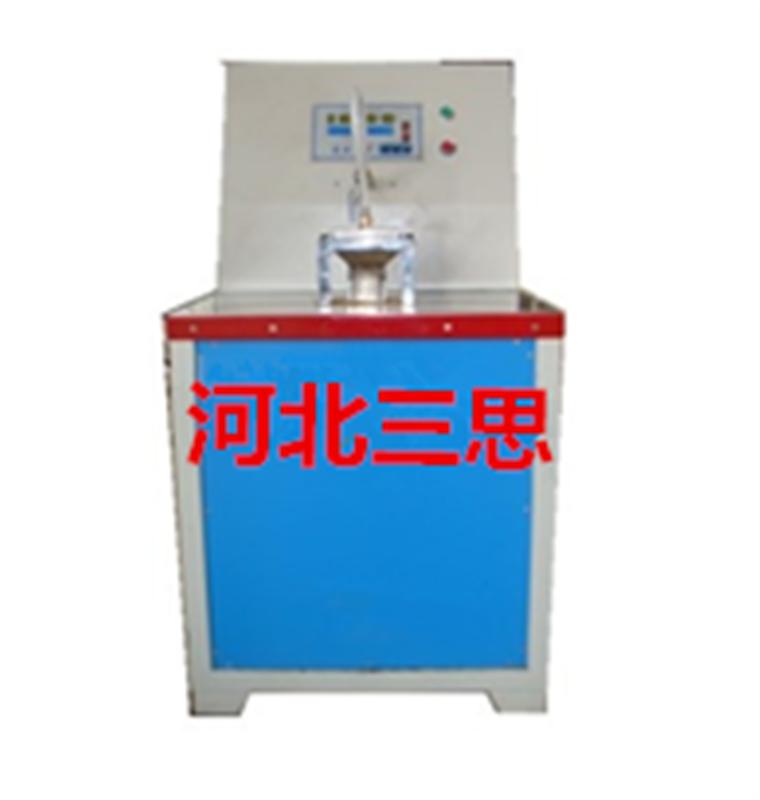

The TSY-41 Sodium Bentonite Waterproof Blanket Filter Loss Measuring Instrument is one of our key products designed for precise and efficient testing under controlled conditions.

First, the scope of use:

The sodium bentonite waterproof blanket filter loss instrument is manufactured by Hebei Sansi Test Equipment Technology Co., Ltd., following the JC/T593-1995 standard. It measures the volume of filtrate filtered from a suspension under specific test conditions.

This device is simple in design, easy to operate, and compact in size. All products come with a one-year warranty, free of charge during the warranty period (excluding damage caused by misuse or natural causes). Customers can reach out for technical support through after-sales services and receive clear solutions.

Second, main features:

• ● Pneumatic type, pressure: 700 kPa
• ● Dimensions: 550 mm (L) × 480 mm (H) × 200 mm (W)
• ● Effective filtration area: 45.6 cm²
• ● Working pressure: 0.69 MPa
• ● Drilling fluid cup injection volume: 240 ml per cup
• ● Drilling fluid cup limit pressure: 1 MPa
• ● Number of mud cups: 3

Third, test steps:

The suspension is stirred for 1 minute, then left to stand for 7.5 minutes and 30 minutes. The mud sample is poured into the fluid loss meter, ensuring the liquid level is within 13 mm of the top edge. The filter paper is placed, and the filter assembly is prepared.

Timing begins, the pressure relief valve is tightened, the regulator is adjusted, and a pressure of 700 ± 35 kPa is applied within 30 seconds. After 7.5 minutes, the liquid hanging on the drain nozzle is removed, and the filtrate is collected using a dry graduated cylinder. After 30 minutes, the remaining liquid is removed, and the volume of filtrate between 7.5 and 30 minutes is recorded.

Fourth, calculation of results:

The filtration loss is calculated using formula (6): FL = 2·V₂

Where:
FL = Filtrate volume at 30 minutes (ml)
Vâ‚‚ = Volume of filtrate collected (ml)

After use: Please clean the instrument thoroughly and apply anti-rust grease for future use.
